‘M1-BI’ Flip-Out (over bed) TV mount for Built-in Application (Motorized)

USD $2,948.00



  • MOTORIZED! It can be controlled with your phone, to home automation systems such as Alexa, Google, Control 4, Crestron, and similar.
  • Installation: Easy 4 bolt installation. Wall mounting slots align with standard stud spacing (16″, 24″, and 32″ on center spacing)
  • Cables: Easily installed & Hidden in the arms.

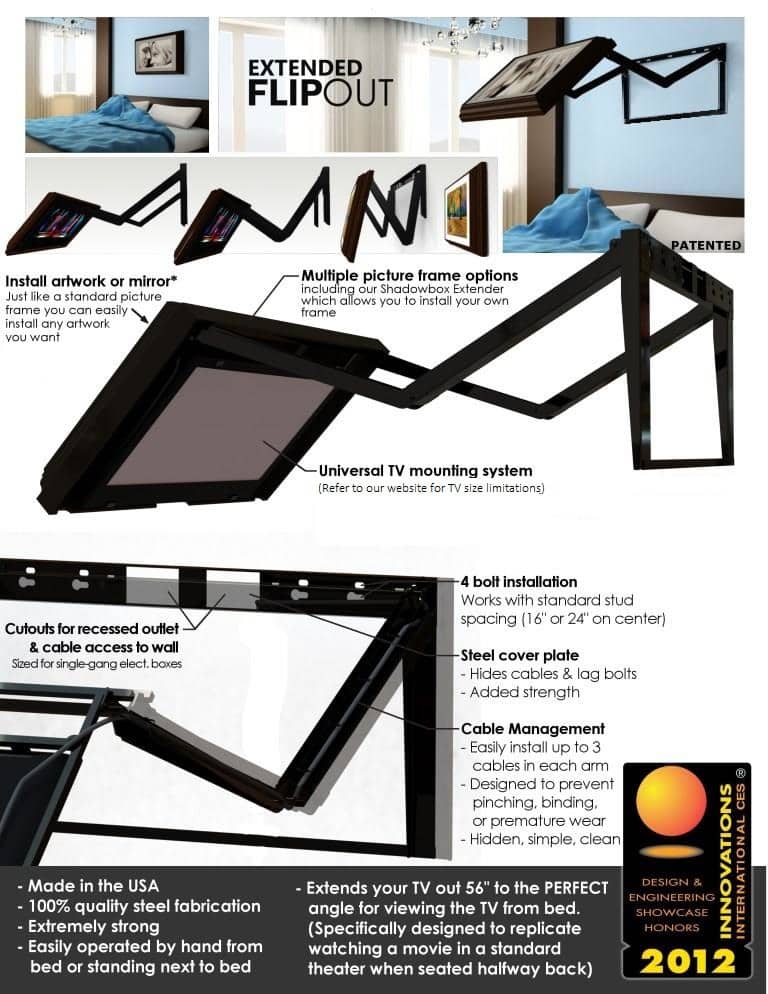

This mount can be built into a custom headboard or wall. With the push of a button, this mount extends your TV out from the wall above your bed so you can watch TV comfortably while lying down or sitting up in bed. The arms of the mount are designed to conceal the cables that connect to your TV. You can easily install these cables yourself. When you’re not watching TV, simply close the mount to hide your TV behind the attached picture frame completely.


Introduced in 2010, our manually operated Extended Flip-Out has proven itself against the test of time. Our first customers still use theirs today! In 2012 we received an INNOVATION AWARD at CES for this product, and in 2014 we received patent approval!  This is our newest upgrade, introduced in September 2017.


There are 12 mounting slots spaced at 16″, 24″, and 32″ spacing to correspond with standard stud walls.  The product comes with lag bolts meant for fastening to wood studs.  However, with appropriate fasteners, you can also attach this product to metal studs, concrete, block, and 3/4″ plywood.  Contact us for more info regarding alternative structures and fasteners.


These mounts are adjustable to fit different size TVs without affecting the Artwork/Picture frame size. You’ll need to refer to the Maximum TV Dimensions for specifics, but in general, here’s what to consider. Most TVs fit within the height & width requirement. However, TVs vary significantly in depth (thickness), so it is the first dimension you should consider when choosing a TV. The maximum TV depth is also affected by the picture frame you choose. Feel free to contact us to verify a TV fit.

We recommend choosing a TV after you’ve received your mount. This way, you will have a better understanding of how the TV fits inside the mount.


You can fit up to 6 cables in total (3 in each arm). Cables are easily installed inside channels along both arms.
There are cutouts along the top edge of the wall mount bracket for cable access to the wall.
Where to put your cable box & DVD player? There are multiple ways to facilitate this. It’s easier explained over the phone. Give us a call.

Video of recommended product for easily routing cables: VideoWiring kit for Motorized Extended Flip-out, Wiring kit for Non-motorized Extended Flip out, Cable pull & drywall saw


Through careful design and testing, we developed this patented design that counter-balances the TV’s weight through a system of cleverly arranged linkages that do not wear over time.  This product is made of steel parts and is incredibly strong, rigid, and reliable. It will stand the test of time.  We use 3 layer bearings (Teflon coated, brass lined, and steel-backed). Two high-torque Planetary Gear motors drive the mount.  Should any issue arise with a motor, they are replaceable.

The Flip-Around mounts are designed to fit various sizes of TVs (see the maximum dimensions specified below).  If you have any questions or if your TV falls outside these dimensions, please feel free to call 1-208-287-8882, click the Live Help box in the lower right corner of your screen, or send us an email.

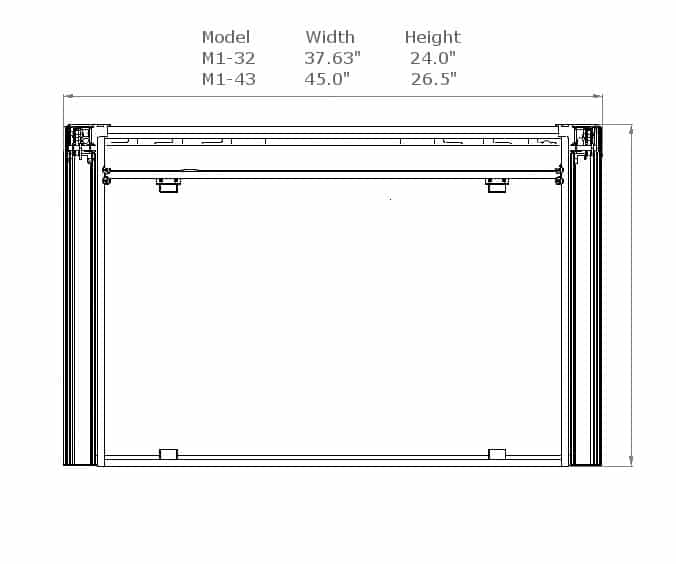

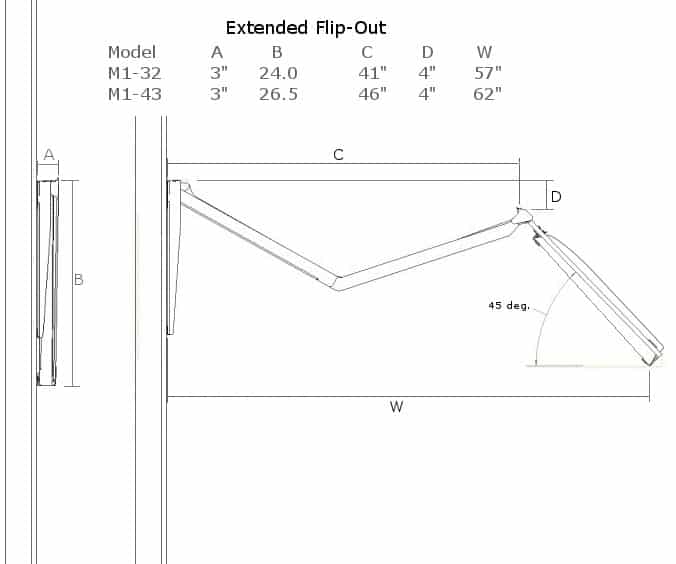

TELEVISION Dimensions & Weight (Maximum Specs)
TV Mount Model #  Picture Frame Style Screen Size Width Height Depth Weight
M1-32-5 LOW PROFILE up to 32 31.0 20.4 3.5 30 lbs.
MAX (200 & 400 Series) 3.0
MAX (986 Series) 3.5
1540B, 1541W 3.5
M1-43-5 LOW PROFILE up to 43 38.4 22.75 3.5 30 lbs.
MAX (200 & 400 Series) 3.0
MAX (986 Series) 3.5
1540B, 1541W 3.5
