‘M1-M’ Flip-Out (over bed) TV Mount w/ Picture Frame (Motorized)

USD $2,699.00USD $2,998.00

Clear

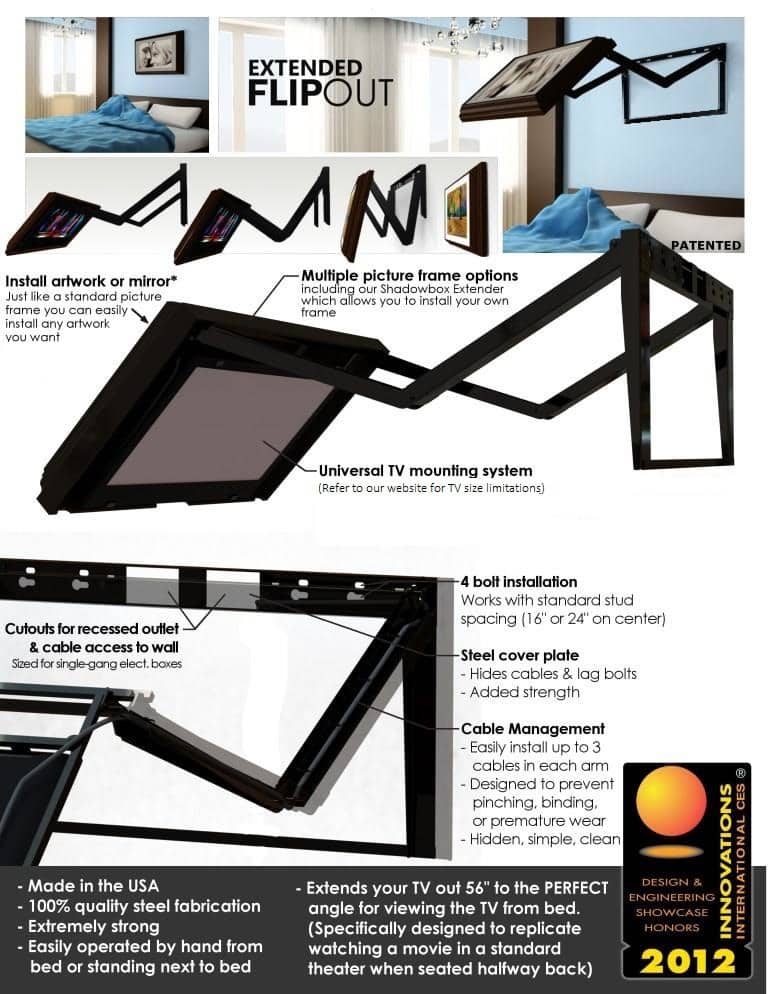

Features

  • MOTORIZED! It can be connected to home automation systems such as Control 4, Crestron, and similar.
  • Installation: Easy 4 bolt installation. Wall mounting slots align with standard stud spacing (16″, 24″, and 32″ on center spacing)
  • Cables: Easily installed & Hidden in the arms.
  • Picture Frames: Select from multiple options or install your own.
  • Artwork: Just like a standard picture frame, you can easily install any artwork you like.

BRIEF DESCRIPTION:

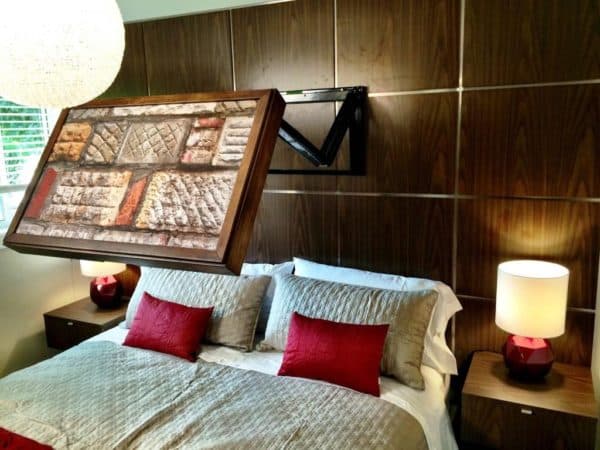

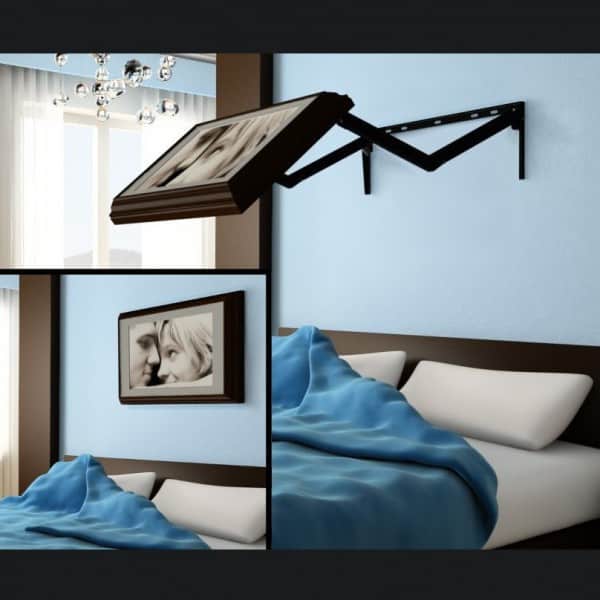

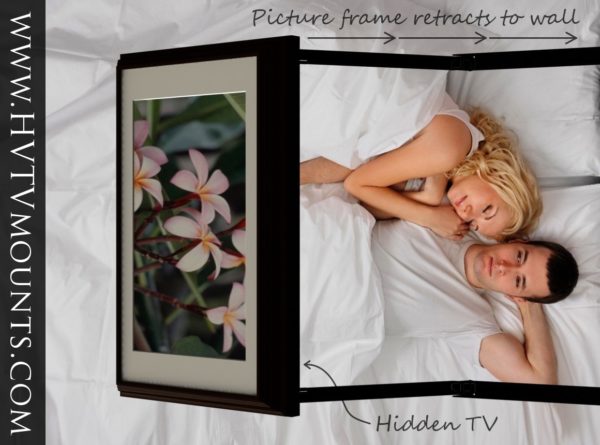

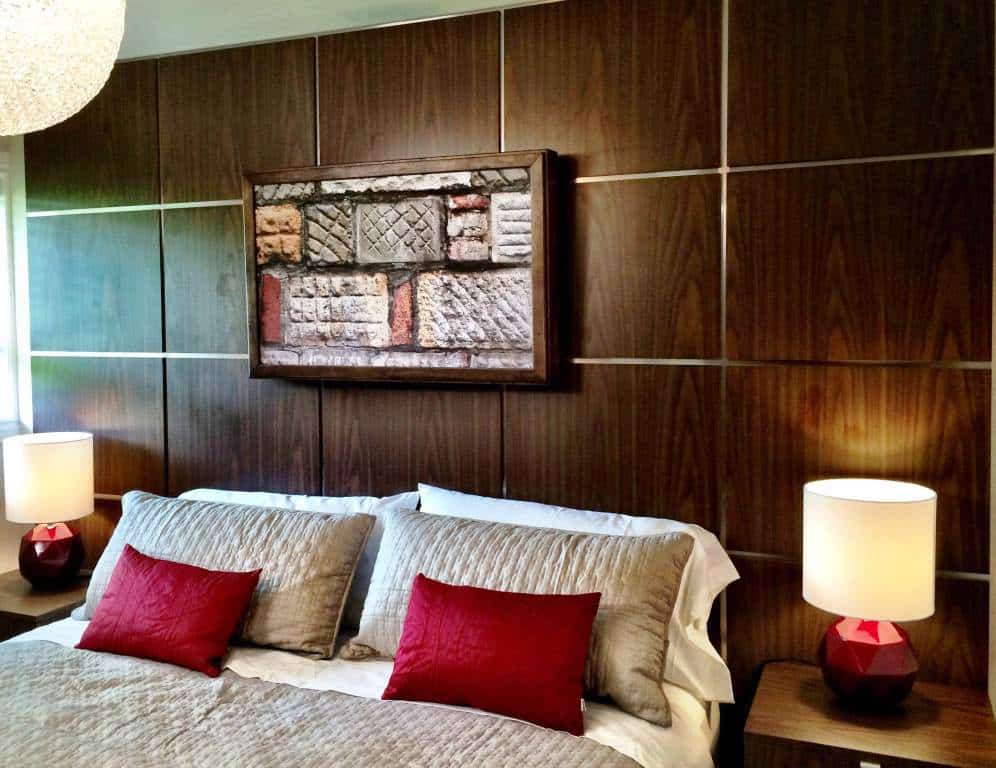

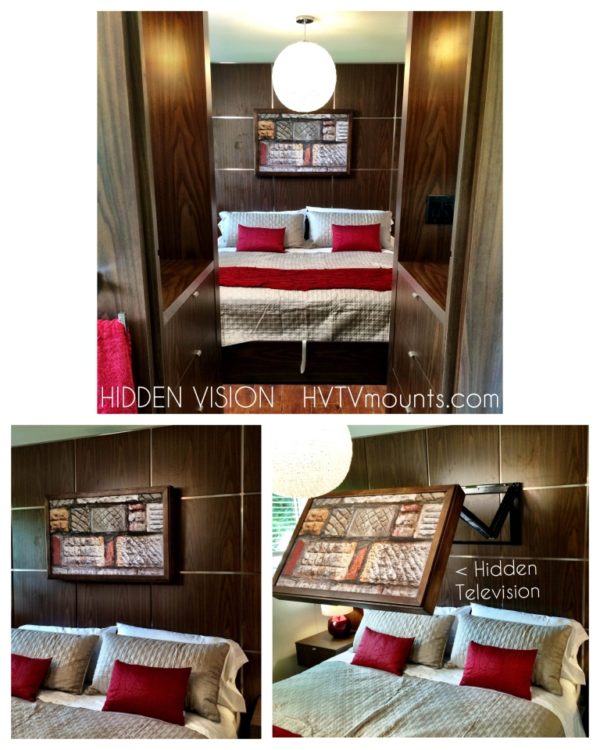

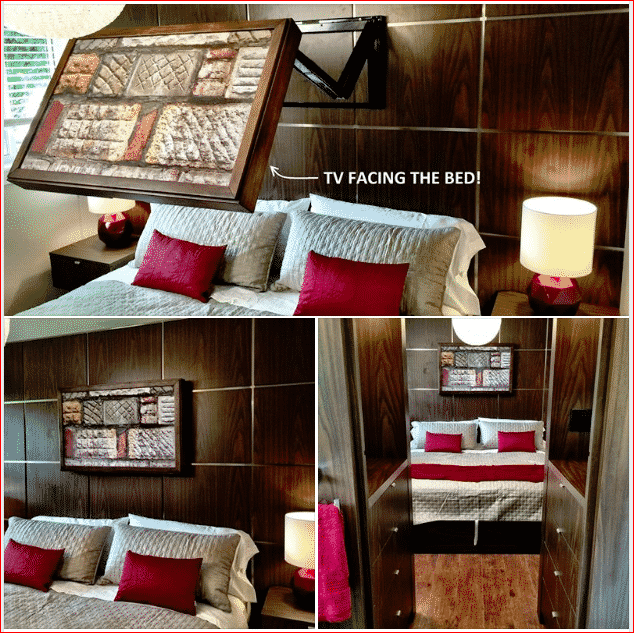

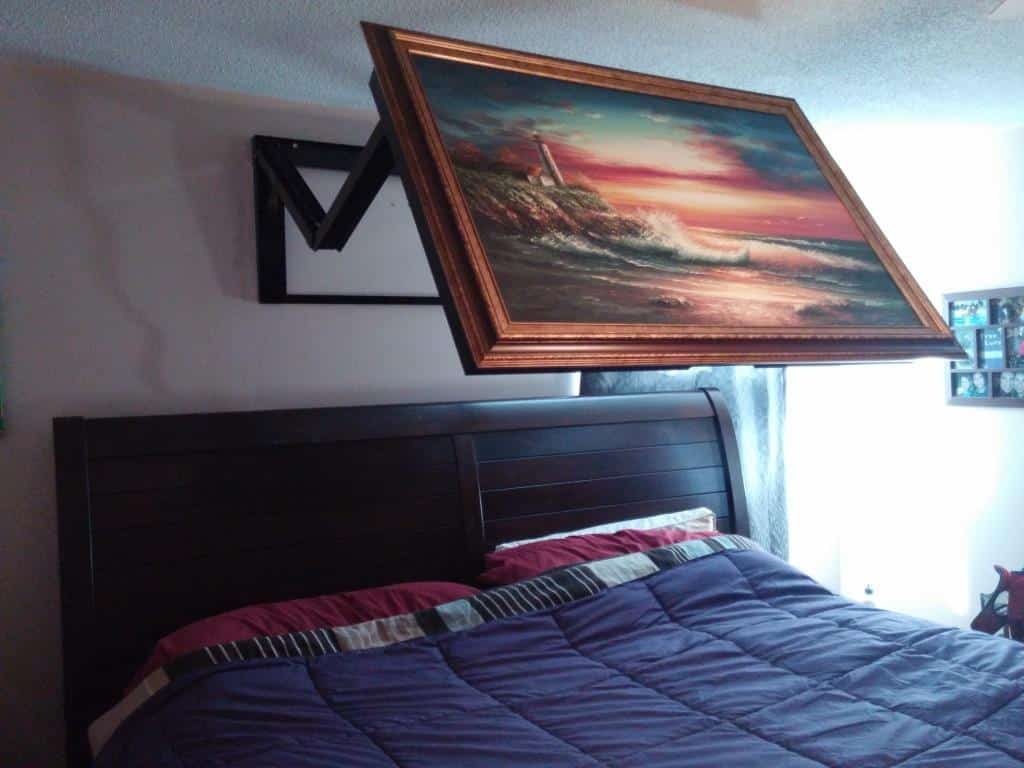

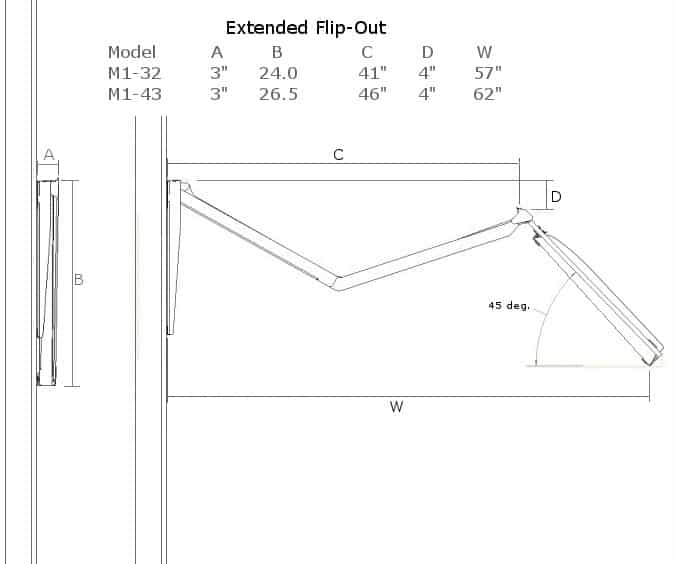

With the push of a button, this mount extends your TV out from the wall above your bed’s headboard so you can watch TV comfortably while lying down or sitting up in bed. Closing flat against the wall, your television will be completely hidden. The arms of the mount are designed to conceal the cables that connect to your TV. You can easily install these cables yourself. When you’re not watching TV, close the mount to completely hide your TV behind the attached picture frame.

HISTORY:

Introduced in 2010, our manually operated Extended Flip-Out has proven itself against the test of time. Our first customers still use theirs today! In 2012 we received an INNOVATION AWARD at CES for this product, and in 2014 we received patent approval!  This is our newest upgrade, introduced in September 2017.

WALL MOUNTING:

There are 12 mounting slots spaced at 16″, 24″, and 32″ spacing to correspond with standard stud walls.  The product comes with lag bolts meant for fastening to wood studs.  However, with appropriate fasteners, you can also attach this product to metal studs, concrete, block, and 3/4″ plywood.  Contact us for more info regarding alternative structures and fasteners.

TV COMPATIBILITY:

Click on the “Recommended TV Specs” (tab above) for TV fit specifications.    These mounts are adjustable to fit different TV heights without affecting the Artwork/Picture frame size. You’ll want to refer to the Maximum TV Dimensions for specifics, but in general, here’s what to consider.  TVs vary significantly in depth (thickness), so this is the first dimension you should consider when choosing a TV.  The maximum TV depth is also affected by the picture frame you choose.  Feel free to contact us to verify a TV fit.

CABLES:

You can fit up to 6 cables in total (3 in each arm). Cables are easily installed inside channels along both arms.

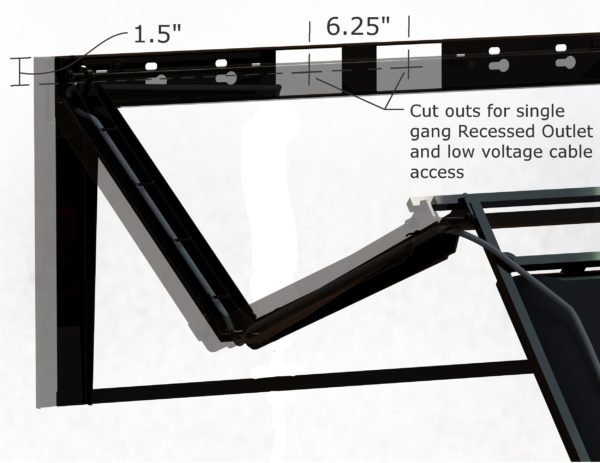

There are cutouts along the top edge of the wall mount bracket for cable access to the wall.
Where to put your cable box & DVD player? There are multiple ways to facilitate this. It’s easier explained over the phone. Give us a call.

Video of recommended product for easily routing cables: VideoWiring kit for Motorized Extended Flip-out, Wiring kit for Non-motorized Extended Flip out, Cable pull & drywall saw

PERFORMANCE & DURABILITY:

Through careful design and testing, we developed this patented design that counter-balances the TV’s weight through a system of cleverly arranged linkages that do not wear over time.  This product is made of steel parts and is incredibly strong, rigid, and reliable. It will stand the test of time.  We use 3 layer bearings (Teflon coated, brass lined, and steel-backed). Two high-torque Planetary Gear motors drive the mount.  Should any issue arise with a motor, they are replaceable.

The Flip-Around mounts are designed to fit various sizes of TVs (see the maximum dimensions specified below).  If you have any questions or if your TV falls outside these dimensions, please feel free to call 1-208-287-8882, click the Live Help box in the lower right corner of your screen, or send us an email

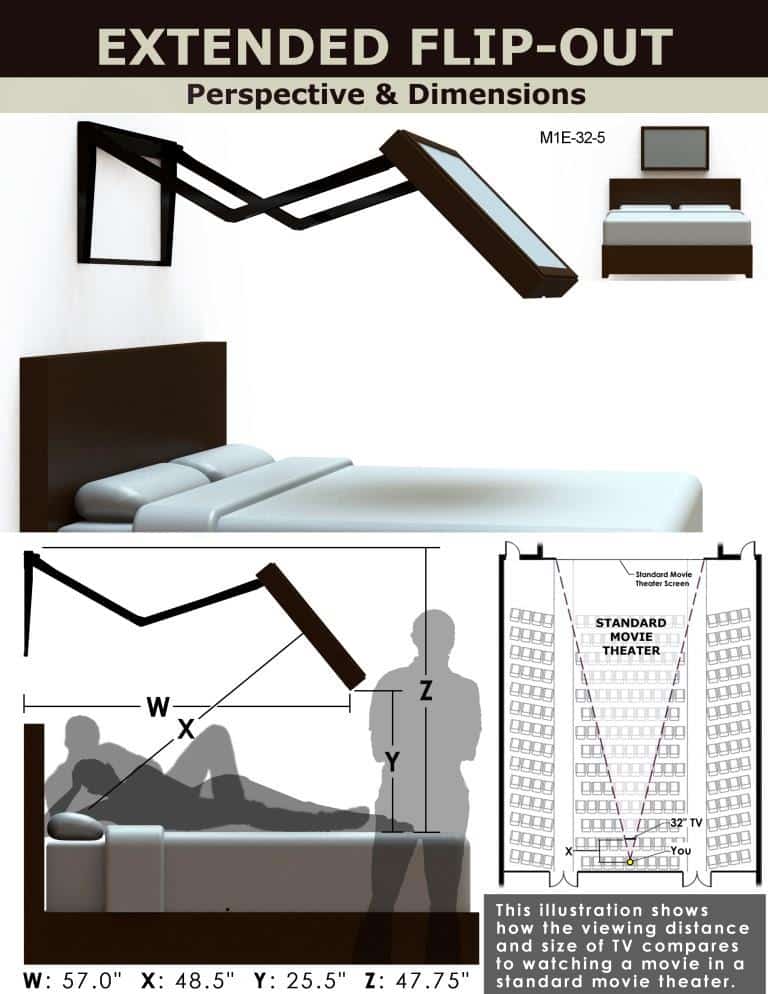

TELEVISION Dimensions & Weight (Maximum Specs)
TV Mount Model #  Picture Frame Style Screen Size Width Height Depth Weight
M1-32-5 LOW PROFILE up to 32 31.0 20.4 3.5 30 lbs.
MAX (200 & 400 Series) 3.0
MAX (986 Series) 3.5
1540B, 1541W 3.5
M1-43-5 LOW PROFILE up to 43 38.4 22.75 3.5 30 lbs.
MAX (200 & 400 Series) 3.0
MAX (986 Series) 3.5
1540B, 1541W 3.5

How’s the Artwork or Mirror work?

How’s the artwork installed? Install artwork or mirror in the picture frame just like a standard picture frame.  Lay the artwork in the frame then use the supplied hardware to hold it in place.

When is the artwork installed?  You can install or replace artwork (or mirror) anytime without disassembling the TV mount or removing the TV.  So, you can install the TV mount and picture frame then decide on artwork later.  Simply, detach the picture frame from the TV mount, insert or replace your artwork, then re-attach the picture frame.


What are my options?

OPTION 1: MIRROR

You can order a mirror from your local glass shop and install it into our picture frame using the supplied hardware.  You’ll want to have the mirror cut to the dimensions shown in the table below.  For safety, request that the mirror is backed with safety backing.  When the TV is extended you will see about 4″ of the back of your mirror above and to the sides of your TV.  Since the mirror safety backing is likely white, we recommend applying black duct tape in these areas.  This isn’t necessary but is an easy way to black out the background around your TV.  (Gorilla is a reliable brand found at most hardware stores)

OPTION 2: Source artwork locally or use your own.

You can order artwork from a local photo printer or art supplier and install it into our picture frame using the supplied hardware.  Here’s what you want to request, “canvas, mounted on 3/16” board (preferably black if available).  You’ll find artwork dimensions listed below as well as in your instructions booklet.   If you’d like to install something different, please contact us to discuss your options and specific product requirements.

OPTION 3: Order a High-Quality Canvas print from Hidden Vision

You can order High-Quality canvas prints from us.  Artwork ships separately and can be installed at any time after the TV and picture frame are installed so no need to rush a decision.  We stretch our canvas prints over a rigid hardboard sized to fit your picture frame. The canvas will be coated with a UV protective Coating and the back is finished with a black border so as not to be an eyesore when watching TV.

– Click here if you’d like us to print artwork from one of these online resourcesshutterstock.comistockphoto.comuseum.org.

– Click here if you’d like us to print one of your pictures.  You can email us an image to print.

– Click here to view our selection of photography.

– Click here for blank canvas for painting

Artwork Dimensions (these are the dimensions of the artwork or mirror to be inserted into our picture frames.  These are NOT the outside dimensions of the Picture Frame)
TV Mount Model #  Picture Frame Style Width Height Max. Depth
M1-32-5 Low Profile “LP” (discontinued)  36-3/8 22-1/2 3/8
1540 Black, 1541 White  37-3/4 23-15/16 3/8
M1-43-5 Low Profile “LP” (discontinued)  43-5/8 25 3/8
1540 Black, 1541 White 45 26-1/2 3/8



OPTION 1: MAX MOULDING Picture Frames More Info

MAX Mouldings are our high-end line of mouldings.   They are solid wood and offer a variety of styles and finishes.

OPTION 2: LOW PROFILE Picture Frame More InfoVideo

This is a simple and modern frame design that we manufacture here in Boise, Idaho.  It’s a great-looking frame for a good price. Available in Popular material and sold as an Unfinished LP frame or Extender frames.  The frame is ready for you to give it a personal look.

OPTION 3: AIO Picture Frame  More Info

This option allows you to install a thicker TV.  The tapered design helps conceal the added depth of the picture frame.

OPTION 4: SHADOWBOX Frame EXTENDER More InfoVideo

This option allows you to install any style picture frame you want.  Once you receive the TV mount, give the Shadowbox Extender to your Framer, and they will attach any frame you choose.

OPTION 5: No Frame

Select the No Frame option if you’d like to recess this mount into a wall or build your own frame around it.  If you need guidance feel free to contact us.

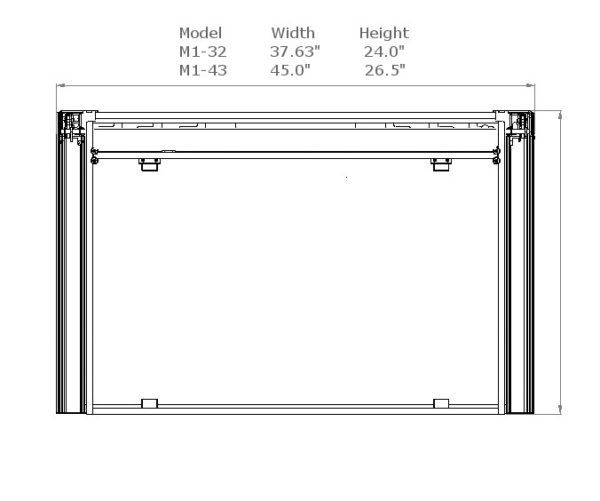

Picture Frame (OUTSIDE DIMENSIONS)
TV Mount Model #  Picture Frame Style Width Height
M1-32-5 ALL STYLES 39-5/8* 25-3/4*
M1-43-5 ALL STYLES 46-7/8* 28-1/4*

* The outside dimensions of your picture frame may vary +/- 1/8″ due to varied molding thickness. Contact us for more information.
